BOBCAT
Next generation switches to provide advanced security and real-time communication through time-sensitive networking (TSN) technology on all ports for standardized Ethernet usage in any application.
The switches support the new IEEE 802.3bz standard with 2.5 Gigabit speeds to bridge the gap between 1 Gigabit and 10 Gigabit speeds. Legacy devices or networks can be connected with 100 Mbit/s, 1 Gigabit uplinks for current networks or 2.5 Gigabit for future-proof networks. The BOBCAT switches support all speeds by replacing the SFP in the field.
The switches are also the first of its kind to enable real-time communication using time-sensitive networking (TSN). Industrial applications require this capability to maximize performance and security, even under the most demanding conditions.
Benefits
- Simultaneously support multiple services on one network through TSN technology
- Limit downtime and ensure network protection through advanced security features
- Prepare for future network growth with increased bandwidth and speed capabilities
Features
- Real-time TSN Ethernet support for precise data transmission
- Advanced security features, including wire-speed access control lists (ACL) and automatic denial-of-service (DoS) prevention
- Increased bandwidth capabilities, supporting tri-speed fiber SFP slots with 100MB/s, 1 Gigabit and 2.5 Gigabit speeds
- Hardware-supported time synchronization in accordance with IEEE 1588v2 Precision Time Protocol
- Interoperability with legacy systems for simplified migration
- Additional interface options through digital input for more flexibility
- Robust industrial design reinforces the switch’s resistance against harsh conditions
Managed BOBCAT switches provide an optimum degree of flexibility. Using the web configurator, you can configure the ideal switch variant for your purposes – even if you only need one of a particular configuration.
Technical details
| Type | Port Type and Quantity | Technical Details |
|---|---|---|

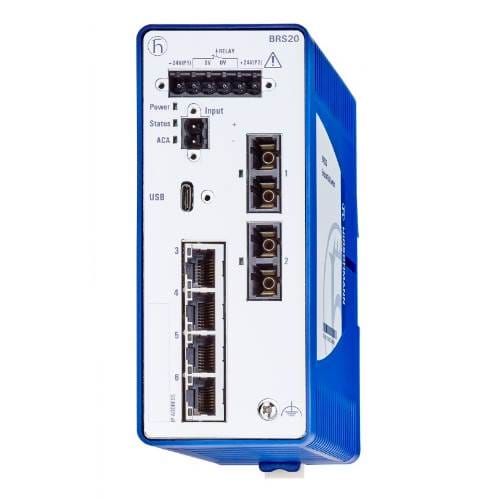

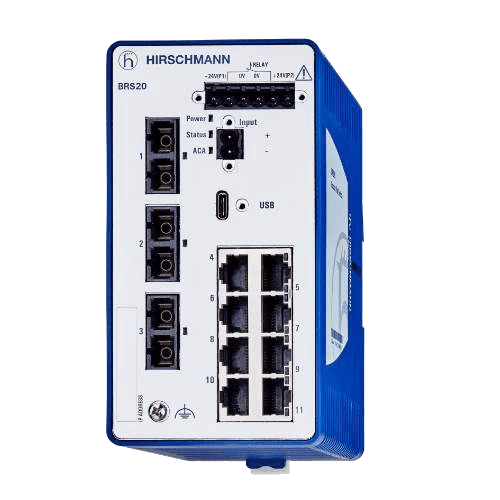

| BRS20 | Fast Ethernet with up to 3 SC/ST fiber ports or 4 SFP ports | Product Detail |
| BRS30 | Fast Ethernet with up to 4 dual-speed 100/1000 Mbit/s SFP or full copper port options | Product Detail |

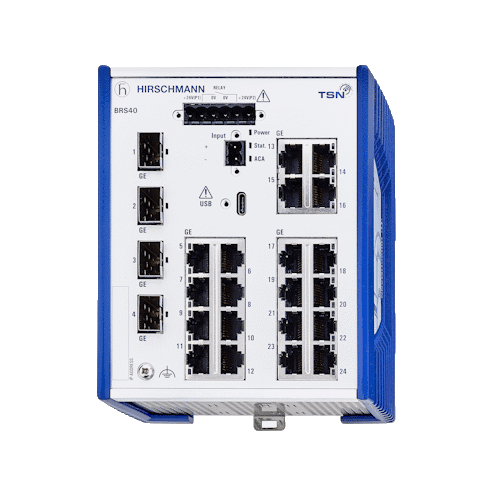

| BRS40 | All Gigabit with up to 4 dual-speed 100/1000 Mbit/s SFP ports or full copper port options | Product Detail |

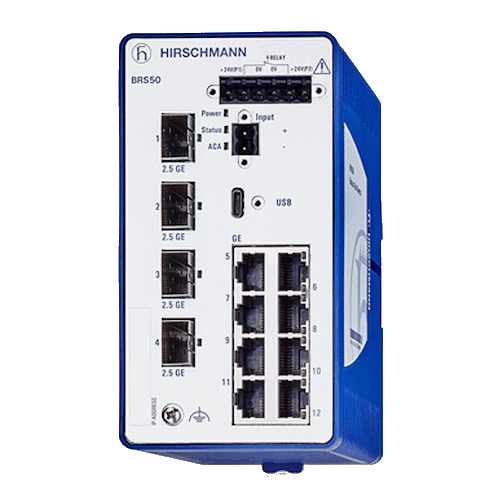

| BRS50 | All Gigabit with up to 4 tri-speed 100/1000/2500 Mbit/s SFP ports or full copper port options | Product Detail |
| BRS22 | Fast Ethernet with PoE+ | Product Detail |

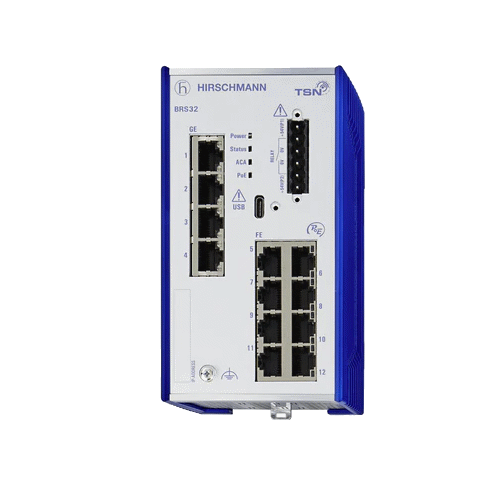

| BRS32 | Fast Ethernet with up to 4 dual-speed 100/1000 Mbit/s SFP ports and PoE+ or full copper port options | Product Detail |
| BRS42 | Gigabit ports with up to 4 dual-speed 100/1000 Mbit/s SFP ports and PoE+ full or copper port options | Product Detail |
| BRS52 | Gigabit ports with up to 4 tri-speed 100/1000/2500 Mbit/s SFP ports and PoE+ or full copper port options | Product Detail |
*All versions support the approval cUL61010.
